Platinum Coated Titanium Mesh

Platinum titanium anode

Platinum titanium anode

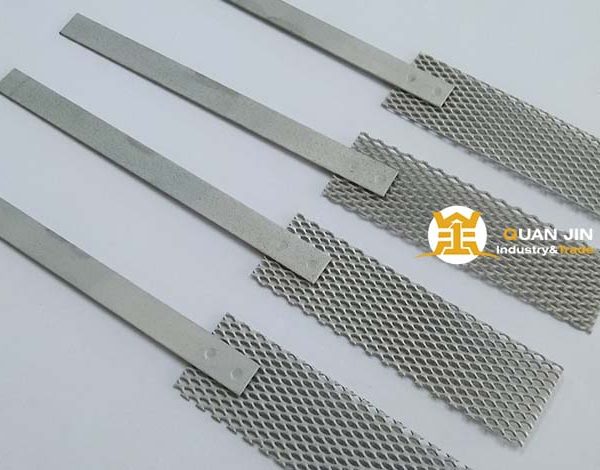

Platinum Coated Titanium Mesh

1.The design of the metal matrix structure ensures a more uniform distribution of the anode current density.
2.The platinum titanium anode is electrically stable/electrically conductive.
3.Platinum coating titanium mesh has good corrosion resistance.
4.Titanium structure light weight, easy to install and transfer.
5.Platinum has a higher oxygen evolution overpotential than MMO.
6.Platinum thickness from 0.5 ~ 5 microns, 1 ~2.5 microns is most suitable.

OVERVIEW
_

Full Description


Platinum Coated titanium mesh

Base metal: Gr1,Gr2,TA1,TA2
Working current range: < 5000A/㎡
Fluoride ion concentration: < 500mg/L
Temperature range: < 80℃
Coated metal: Pt
Precious metal content: ≥15g/㎡
Electrode form: plate/tube/net/rod
PH value: 1-12

appearance

Reticulate or lamellar, silvery white, metallic luster.

Technical indicators:
1). Platinum layer thickness :1um-5um
2). Life: gold-plated tank life of more than three years, for the first domestic counterparts.

Technical features:
It is an insoluble anode, platinum coating and titanium base low bond firmly, stable performance, can replace pure gold, pure platinum anode, used in gold and other precious metals plating tank.
