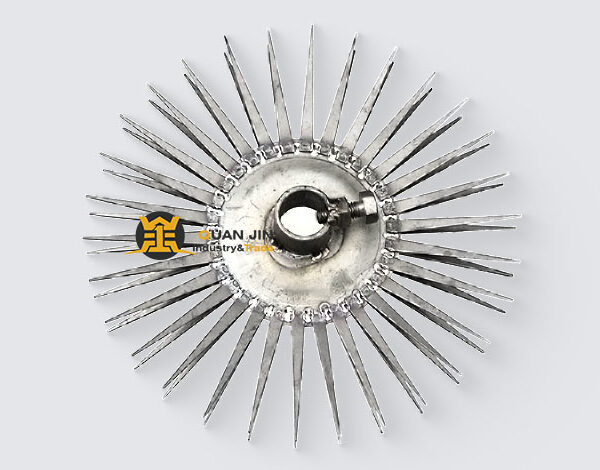

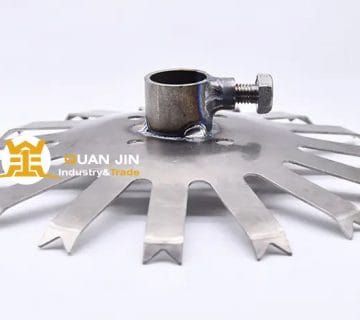

Titanium Jigs for Anodizing

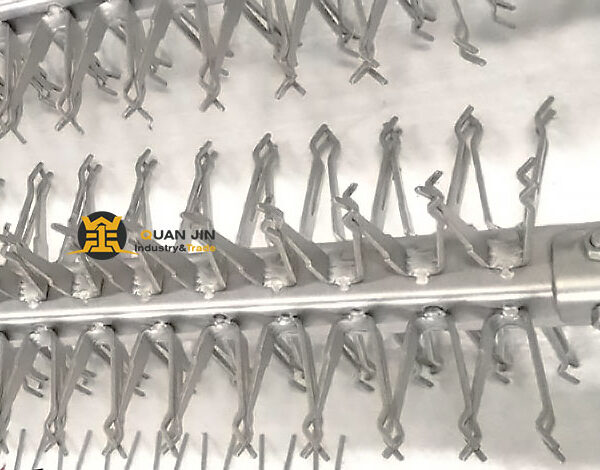

Titanium Anodizing Rack

Titanium Anodizing Rack


What is the main role of titanium fixture in the anodizing process?


The main roles of titanium fixtures in the anodizing process are as follows:

    • They provide a stable fixation and support for the workpiece. This ensures that the workpiece remains in a precise position within the electrolytic bath, preventing movement or deformation during the process, which is crucial for achieving a uniform and consistent anodic oxide film.
    • Titanium fixtures offer excellent electrical conductivity. This enables a uniform distribution of electric current over the surface of the workpiece, facilitating a homogeneous anodizing reaction.
    • They prevent short circuits. By keeping the workpiece from direct contact with other parts of the electrolytic bath, the risk of short circuits is significantly reduced, ensuring the normal operation of the electrolysis process.
    • They enhance production efficiency. With a well-designed titanium fixture, multiple workpieces can be processed simultaneously during anodizing, thereby increasing productivity.
    • They contribute to reducing the defect rate. By maintaining stable process conditions, the occurrence of quality issues with the anodic oxide film due to improper positioning or poor contact of the workpiece is minimized, thus lowering the rate of defective products.

What is Titanium Jigs for Anodizing


Titanium Jigs for Anodizing, refers to the titanium-made fixtures specifically designed and used in the process of anodizing. These jigs play essential roles in holding and positioning the items undergoing anodization, ensuring a stable and controlled environment for the electrochemical reaction to take place and helping achieve uniform and high-quality anodic oxide coatings on the surfaces of the objects.

How to choose the right Titanium Jigs for Anodizing?


When choosing the right Titanium Jigs for Anodizing, several factors need to be considered:

  1. Workpiece size and shape: The jigs should be appropriately sized and shaped to securely hold and position the specific workpieces. They need to provide good contact and support to prevent any movement during the anodizing process.
  2. Current distribution: The design of the jigs should ensure even current distribution across the workpiece surface to obtain a uniform anodic oxide layer.
  3. Corrosion resistance: Since they are exposed to the anodizing electrolyte, the titanium jigs themselves need to have excellent corrosion resistance to withstand the chemical environment and have a long service life.
  4. Ease of loading and unloading: The jigs should be designed for easy and quick loading and unloading of the workpieces to improve efficiency in the production process.
  5. Compatibility with the anodizing system: They should be compatible with the equipment and setup of the anodizing system to ensure seamless integration and proper functioning.
  6. Cost: While quality is important, the cost of the jigs also needs to be taken into account to ensure it fits within the budget of the anodizing operation.

Evaluating these factors carefully will help in selecting the most suitable Titanium Jigs for Anodizing, resulting in efficient and high-quality anodizing processes.
